Oil & Gas
Heat exchangers for oil and gas in the UAE: thermal equipment engineered for upstream, midstream and refining service, built and serviced in Abu Dhabi.
View Sector
Equipment

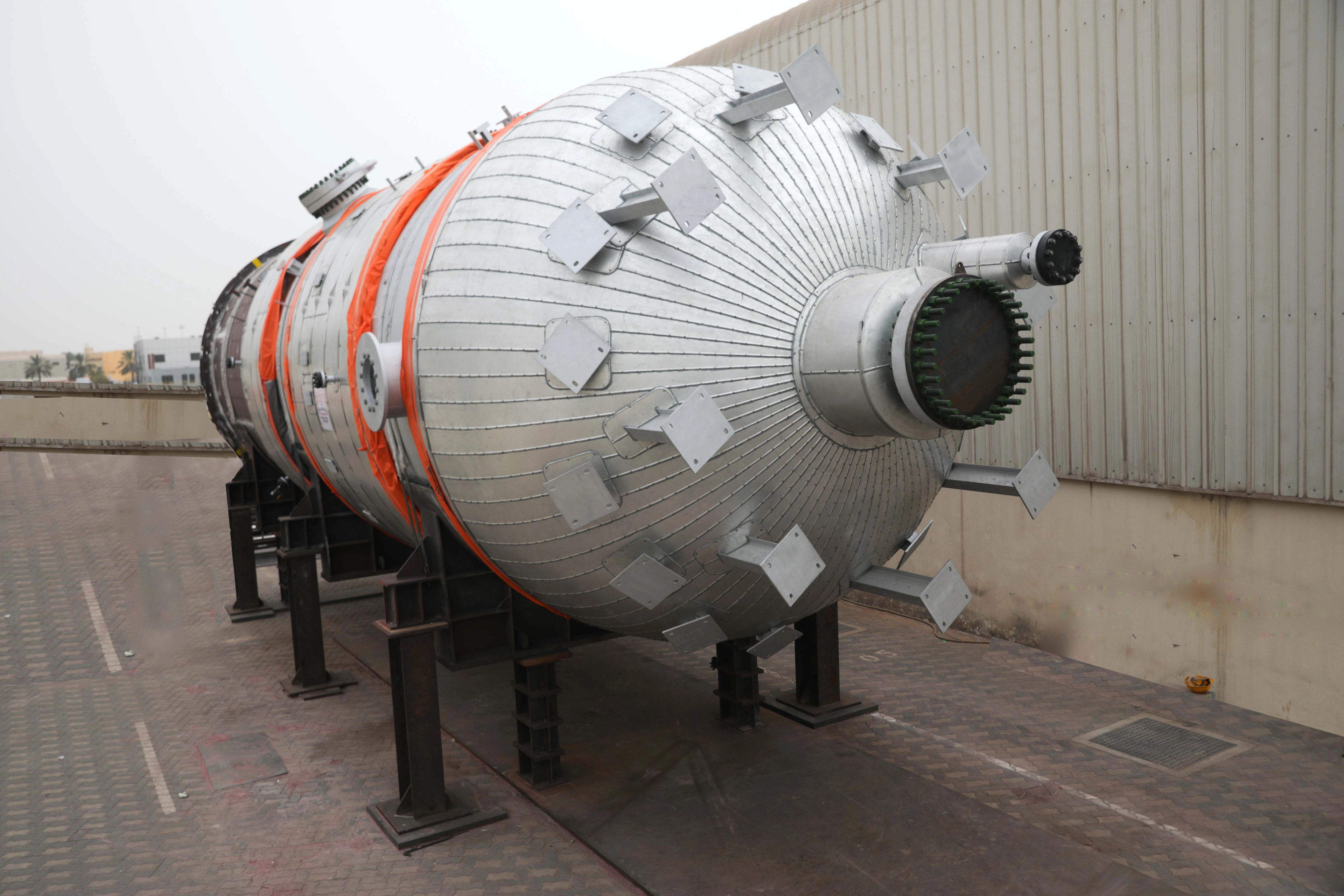

Pressure Vessels
ASME Section VIII Div.1 pressure vessels, including separators, filters, drums, and columns, fabricated and code stamped in Abu Dhabi.
Scroll Down
The Anatomy of a
Pressure Vessel
Shell
The cylindrical pressure boundary, rolled and welded from plate to ASME U2 Section VIII Div.1.
Drag to rotate
For representation purposes only.
Built to
Solve
Engineered against the specific failures that cost operators downtime, contamination or wasted energy.
Asset protection
A pressure vessel is a stored-energy hazard — design or weld shortcuts are not discovered until failure, and failure is catastrophic. ASME U2 Section VIII design and certified welding are the only acceptable standard.
Process integrity
Separator and drum internals decide downstream equipment life; poor vessel hydraulics cascade through the whole train, showing up as carryover, fouling and premature wear well beyond the vessel itself.
Operational efficiency
Overseas vessel procurement adds months of schedule and freight risk to projects that a UAE fabricator eliminates. In-region fabrication also means faster response when a vessel needs modification or repair.
Why Dolphin Group for
Pressure Vessels
Code authority in-country
ASME U2 and R Certificates of Authorization held at Mussafah — new construction and repair, stamped locally.
Heavy fabrication capacity
25,000 m² of workshop with rolling, PWHT and lifting capacity for vessels beyond 100 tonnes.
ADNOC & Local+ standing
Vendor-approved and Local+ Certified — your vessel procurement scores on local value while cutting schedule.
Key
Benefits
What sets pressure vessels from Dolphin Group apart, in specific and measurable terms.
- 1
Certified fabrication
ASME U2 Stamp fabrication with full code data reports issued with every vessel.
- 2
Full material traceability
Full material traceability on every pressure part, from plate to nozzle.
- 3
Sour service capable
PWHT, impact-tested and NACE MR0175 sour service capability for H₂S-bearing streams.
- 4
No subcontract chain
In-house rolling, welding, NDT and hydrotest — one workshop, one schedule, no subcontract handoffs.
- 5
Faster project schedules
UAE fabrication removes months of freight and customs delay from the project schedule.
- 6
R-stamp repairs
Repairs and alterations of existing code vessels, keeping assets in service instead of replacing them outright.
Technical
Specifications
Design codes, materials and testing scope confirmed for every pressure vessels order.
Design code
ASME U2 Section VIII Div.1 (U & R stamps)
Design pressure
Full vacuum to 150+ bar
Materials
CS · LTCS · SS · Duplex · Clad plate
Max weight
Single-piece vessels to 100+ tonnes
Welding
SMAW · GTAW · SAW · FCAW, qualified to ASME U2 IX
Testing
Hydro · pneumatic · RT/UT/PT/MT · PMI · hardness
Design and Manufacturing
ASME U2 Section VIII Div.1 design in PV Elite through U-stamped delivery, with in-house rolling, welding, NDT and hydrotest under one roof.
Refurbishment
ASME U2 R-stamp repairs and alterations that keep an existing vessel's certification intact instead of replacing it outright.
Servicing
NDT, hydrostatic testing and internals inspection that confirm a vessel is fit for continued service before it goes back on line.
Long Term Contracts
Scheduled statutory inspection programmes that keep vessel condition and code documentation current across every turnaround.
Where It's
Used
Pressure Vessels in service, sector by sector, application by application.
Petrochemicals
Heat exchangers for petrochemical plants in the UAE: we build exchangers and reboilers for crackers, polymer plants and aromatics complexes worldwide.
View Sector
Chemical Manufacturing
Heat exchangers for chemical plants in the UAE: corrosion-resistant exchangers and vessels for acids, alkalis and speciality chemistry.
View Sector
Water & Desalination
Desalination plant heat exchangers from the UAE: we build high-alloy heat exchange equipment for MSF, MED and RO desalination plants.
View Sector
Power & Energy
Heat exchangers for power plants in the UAE: HEI-standard condensers, coolers and heat recovery equipment for conventional and renewable generation.
View Sector
Marine & Offshore
Marine heat exchangers built in Abu Dhabi: compact, seawater-tolerant cooling systems for vessels, rigs and offshore platforms.
View SectorFrequently Asked Questions
From small filter housings to single-piece vessels beyond 100 tonnes and 3.5 m diameter, limited mainly by road transport constraints from Mussafah.
Yes — our ASME U2 R-stamp covers code repairs and alterations, re-rated and documented with new nameplate data.
Yes — NACE MR0175/ISO 15156 compliant materials, hardness-controlled welding and PWHT are standard sour-service scope.
A complete dossier: U-1 data report, material certificates, weld map, WPS/PQR, NDT reports, hydrotest records and nameplate rubbing.
Either. Our engineers perform full ASME U2 design in PV Elite from your process data, or fabricate to your approved drawings.
Yes — demister pads, vortex breakers, distributors and column internals are supplied and installed in-house.
Yes — furnace and local PWHT with documented time-temperature records.
Send your process datasheet or drawings via the RFQ form; budget pricing is typically returned within a week.
Talk to an Engineer About Pressure Vessels
Send your duty requirements or existing datasheet, and our engineers will confirm the right configuration.
